museum exhibit case
Museum Signage Systems
** Ships directly from Netherlands - You will be notified with shipping quote.
**Order will be processed after your approval.**
* 8 upgrade options available
43.68"H x 39"W x 23.4"D x 17.5" Glass Height
**"Options" are "add-ons" and are not sold by themselves. They must be bought in addition and added on to the ATC1000-450 table case.
***Ships in 6 to 10 weeks.
Cases are made in Amsterdam and shipping is usually over $1000 per case.
Width: 1000 mm (39")
Depth: 600 mm [23.5"]
Height of base construction: 670 mm [26.5"]
Visible glass height: 450 mm [17.5"]
Overall height: 1120 mm [43.68"]
MDF: ZF MDF, fire retardant class B2 / Euroclass D
Locks: Security locks with a minimum of 5 pins
Glazing: The vertical glass panes and the lid pane are made of 8,76 mm thick laminated safety glass that comprises two glass panes each 4 mm thick that are specially bonded to each other with a two ply interlayer. This meets the European anti bandit standard of DIN EN 356 class P2A. This glass includes a UV Protection for the inside of the display area. (OPTION: Change to Low Iron white glass)
Aluminum Extrusion: Anodized alumnum 32mm x 32mm
OPTIONAL: color Coating: According to RAL colour card "Classic"
RAL 9005 or 9010 as powder coat. All other colors as Lacquer
Fabric: According to Baumann Ultra IV range. 112, 121, 122 and 406 standard. Other colors optional
Corpus: The display case is constructed from 4 vertical glass walls, a lid pane and a base construction from Aluminum extrusions (Delivery as an assembled unit).
Glass case: All exposed edges rounded off and polished. The panes close flat against each other (butt joints). The lid pane is a rectangular glass panel with a 1.5 mm projection all around. The butt joints are connected by clear adhesive. OPTIONAL: Miter glass construction

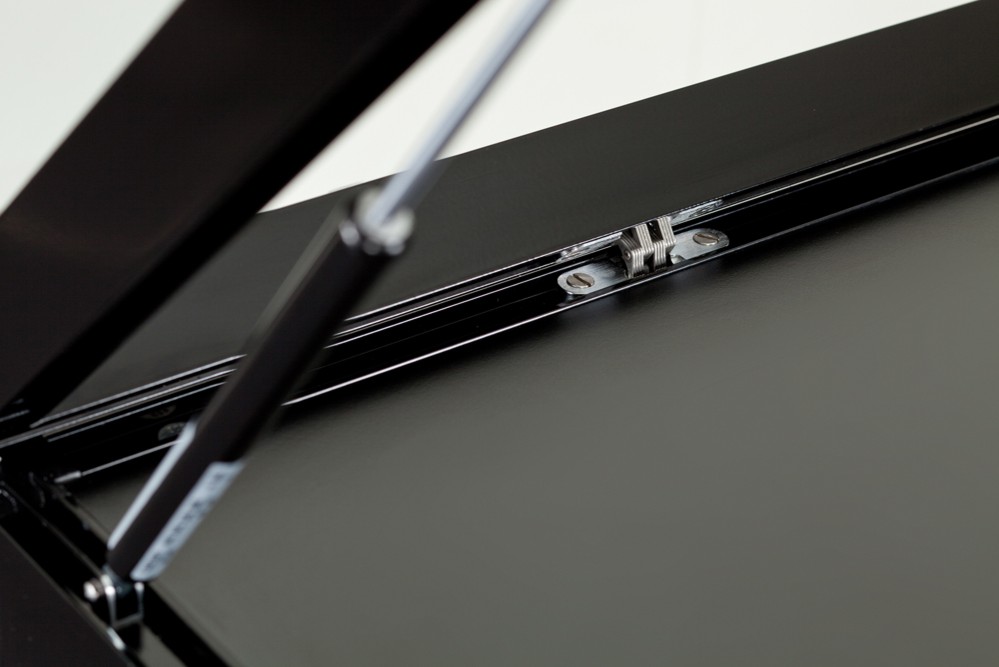

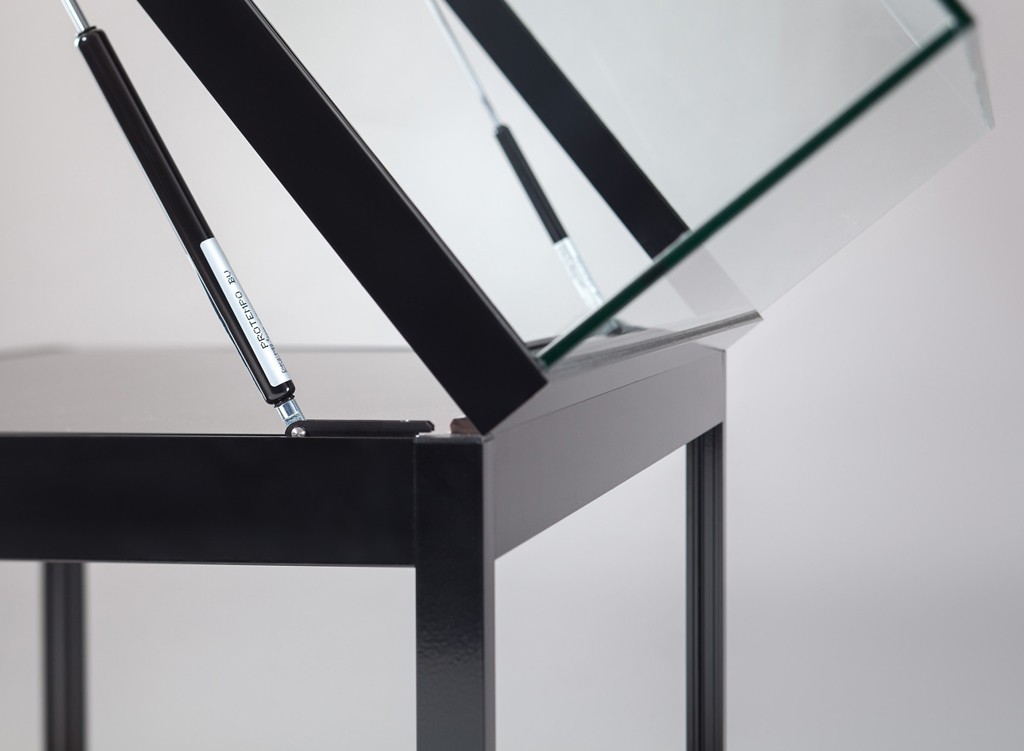

Opening: The 5 sided glass hood is bonded to an aluminum frame can be opened by means of gas pressure springs and hidden hinges. Lifting is by suction cup applied to glass. OPTIONAL: Add handle to case.
Locking: 2 safety cylinder lock is built into the lower aluminum extrusion of the glass hood exposed in the front.
Base construction: Solid frame is made of extruded aluminum profiles 32mm x 32mm including 2 extra profiles on the 600mm sides for added stability. The case legs have levelling feet. OPTIONAL: add climate compartment and inside gasket seal.
Display plate: The display plate is made from ZF MDF. Visible surfaces are covered with fabric.
OPTIONAL LIGHTING: Add LED Light bar
